Language Converter

This option allows you to auto-translate a string from any language to English. Thus, you have the ability to define / maintain the language dictionary for English with all other language characters. This Language Converter can then be specified in the respective functionality to achieve the required conversion specified.

There are two ways to create the Language Converter:

  • As a fresh record

  • On the basis of an existing Language Converter definition

As fresh record

To add Language Converter as a fresh record

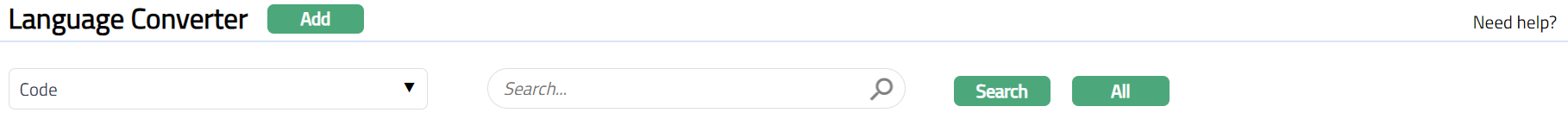

  1. From PaymentGrid menu, click Settings and click Language Converter. Language Converter Search page appears.

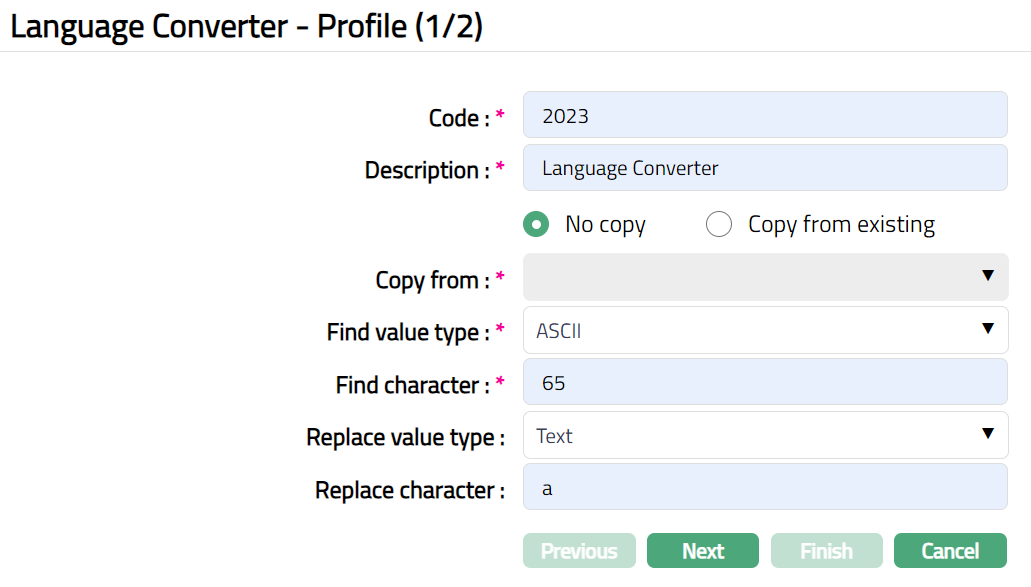

  1. Click Add. Language Converter -- Profile (1/2) page appears.

  1. Enter Code for the Language Converter. This has to be unique.

  2. Enter Description for the Language Converter.

  3. By default, No copy radio button will be selected.

  4. Select Copy from, from the drop-down list. The list will display the existing Language converter maintenance list. This field will be enabled only if Copy from existing option is chosen above.

  5. Select Find value type from the drop-down list. The options are ASCII (American Standard Code for Information Interchange) and Text. By default, ASCII is selected.

  6. Enter Find character. If the Find value type is selected as ASCII, then enter any numeric values from 0 to 255. If the Find value type is selected as Text, enter any alphanumeric value.

  7. Select Replace value type from the drop-down list. The options are ASCII and Text.

  8. Enter Replace character. If the Replace value type is selected as ASCII, enter any numeric value from 0 to 255. If the Replace value type is selected as Text, then enter any alphanumeric value.

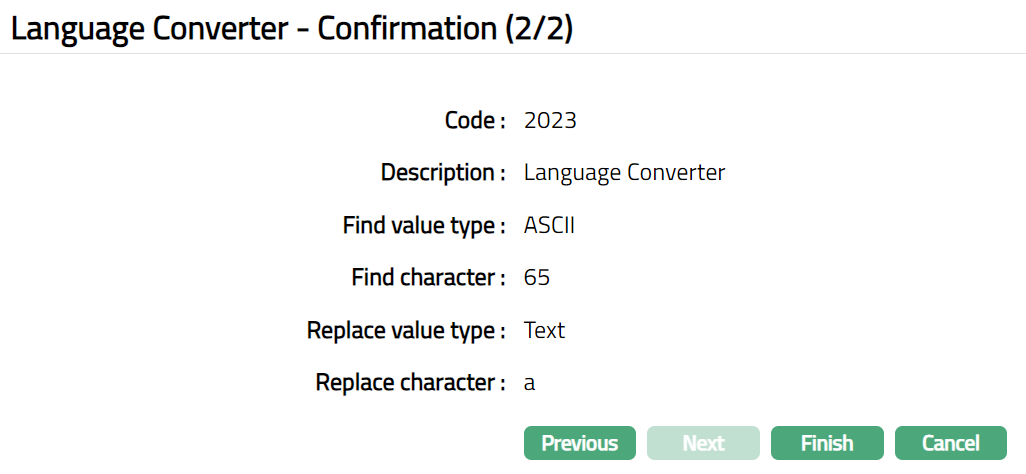

  9. Click Next. Language Converter -- Confirmation (2/2) page appears.

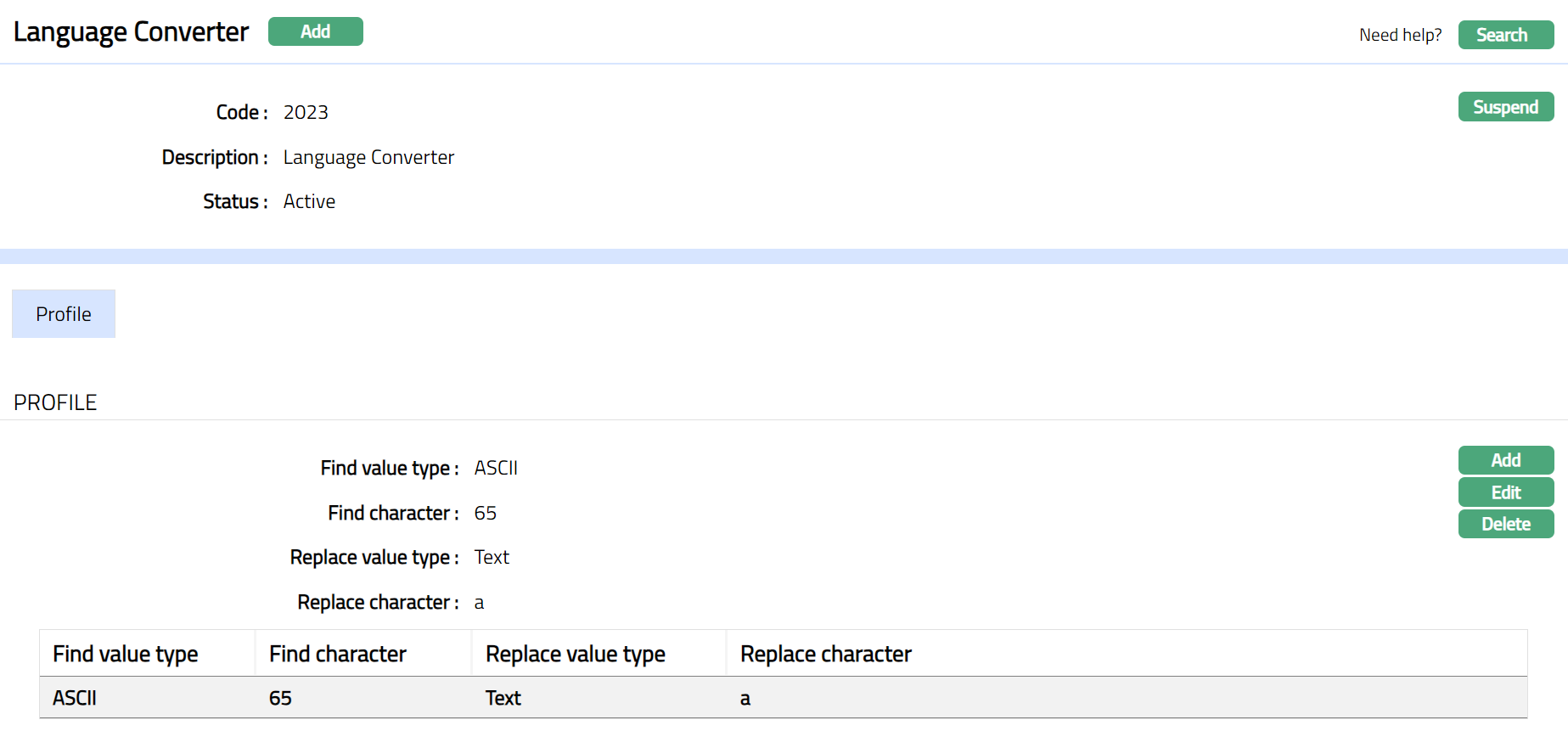

  1. Click Finish. Language Converter page appears, showing the details of the record that you saved. Status of the record will be Active.

Functions: Add, Search, Edit, Delete, Suspend, Activate.

Delete: You can delete a Language Converter record saved in CC-PG by a click on Delete button. CC-PG will ask for confirmation, on approving which the selected record will be deleted. Once the record is approved, it cannot be deleted.

Suspend: You can suspend a Language Converter record by clicking on Suspend button. When you click on Suspend button, CC-PG displays an alert message. On confirmation CC-PG will suspend the Language Converter and Activate button will appear in place of the Suspend button.

Activate: If you want to activate a suspended Language Converter record then click on Activate button. CC-PG displays an alert message. On confirmation CC-PG will Activate the record and Suspend button will appear in place of Activate button.

Profile

Profile tab, which is the default tab in the Language Converter screen, shows the basic details of the Language Converter record created. It also allows you to add as many conversions as you want for a specific Language Converter record.

To add new conversion record for a Language Converter,

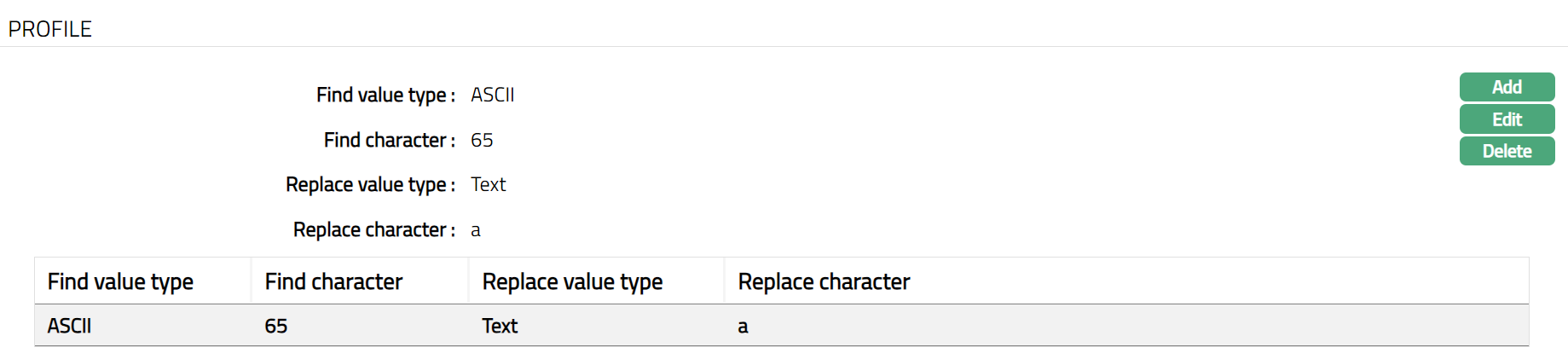

  1. Access Language Converter page and click Profile tab to view the details as per sample below. The details are defaulted from the entries that you made during creation of a Language Converter. For details refer to Language Converter -- Profile (1/2).

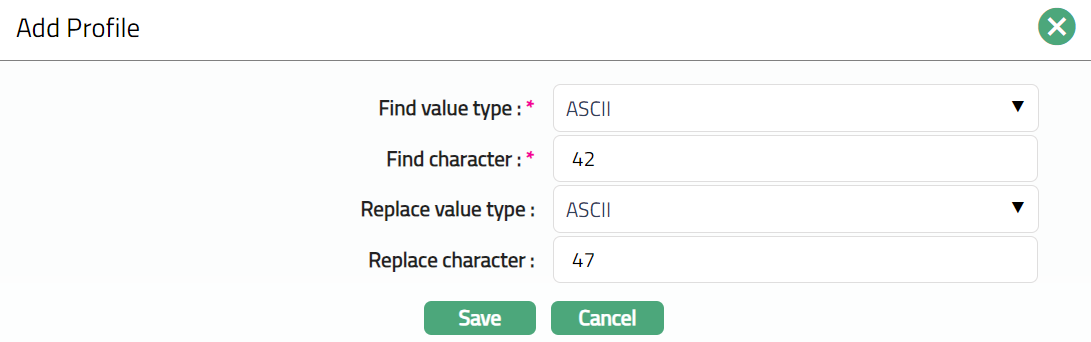

  1. Click Add. Add Profile page appears.

  1. Enter details of the Find value type and Replace value type from the available drop-down list.

  2. Enter the details for Find character and Replace character. If the Find Value Type is selected as ASCII, then enter any numeric values from 0 to 255. If the Find Value Type is selected as Text, then enter any alphanumeric value. Though it is possible to add multiple records under the same code, the combination of Find Value Type and Find Character under the Code has to be unique.

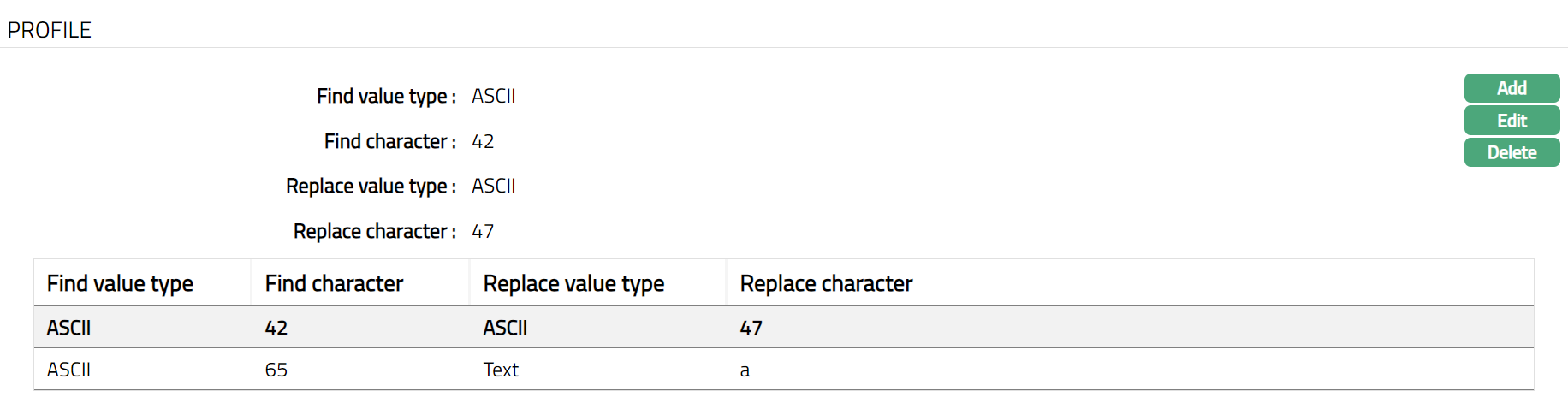

  3. Click Save. Profile tab appears with the added details.

Functions: Add, Edit, Delete

To view / edit profile.

  1. Select required Language Converter record you wish to Edit.

  2. Click Edit. Edit Profile page appears.

Note: All the fields are editable.

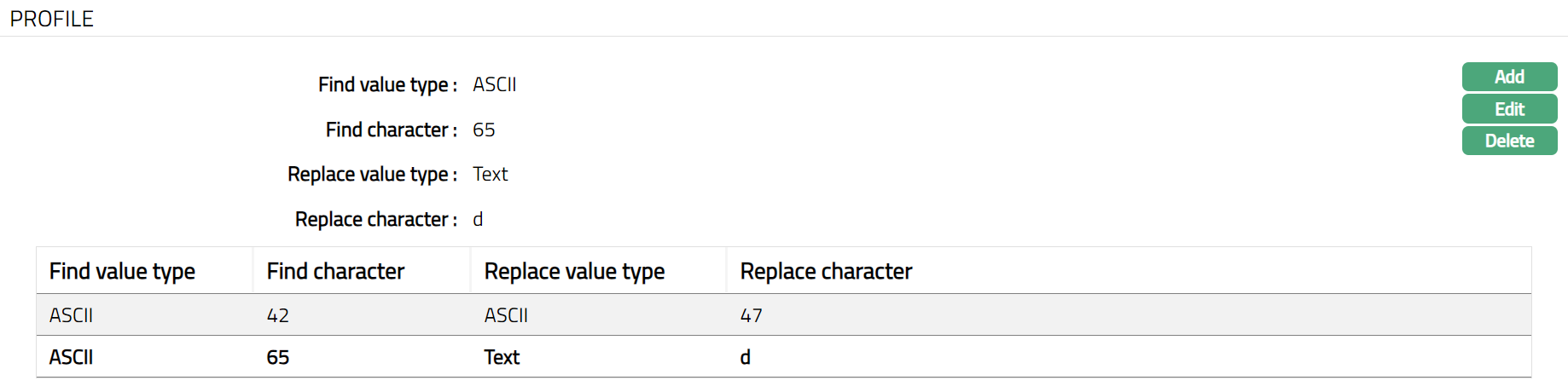

  1. Click Save. Profile tab appears with the edited details.

Functions: Add, Edit, Delete
